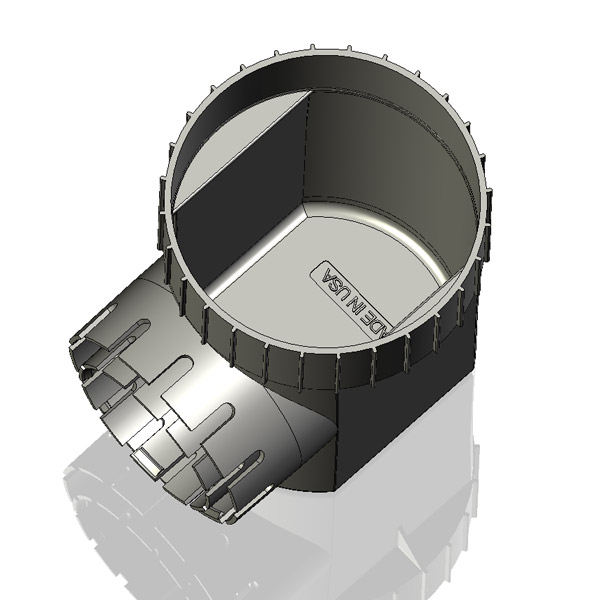

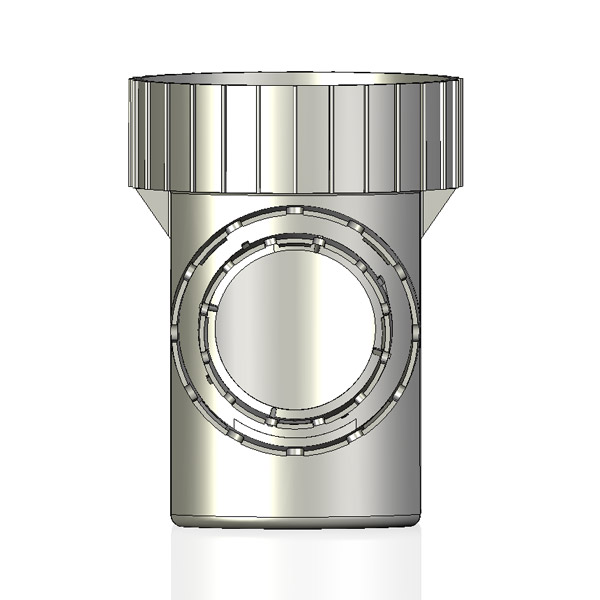

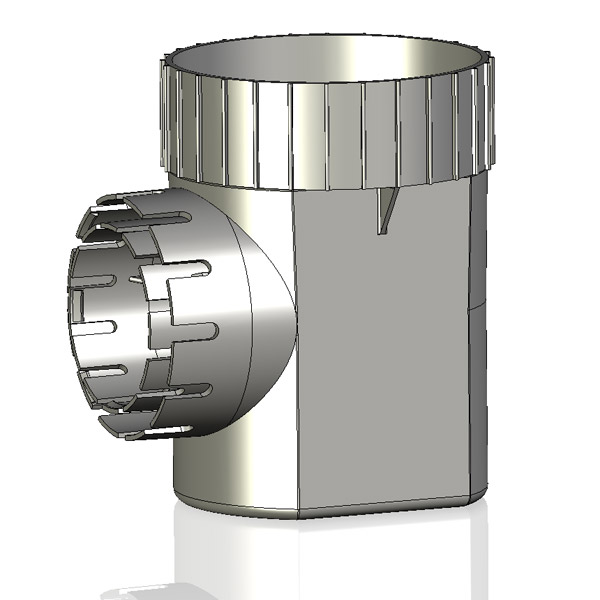

6" Round Basin, 1 Outlet

A Round Catch Basin manufactured from High Impact Polystyrene (HIPS) which is used to collect and discharge excess water in order to prevent potential damage to landscapes and property. This basin has 1 universal outlet which can be used with 3" & 4" Sewer & Drain Pipe (ASTM D2729), 3" & 4" Corrugated Pipe and 3" & 4" Triple Wall Pipe. This basin is designed to accept the 6" Round Flat, 6" Round Atrium and 7" Square Universal grates and includes a sump, which allows sediment to settle in basin to minimize clogging of pipes. Also available in a 2 outlet model.



Features

  • Manufactured from High Impact Polystyrene (HIPS).
  • UV stabilized to protect from sun degradation.
  • Universal Outlet used to connect to 3" & 4" Sewer & Drain Pipe (ASTM D2729), 3" & 4" Corrugated Pipe and 3" & 4" Triple Wall Pipe.
  • Also available in a 2 Outlet model.
  • Accepts 6" Round Flat, 6" Round Atrium and 7" Square Universal Grates.
  • To extend height of basin, use 6" PVC Pipe (ASTM D2729 and ASTM D3034, SDR 35) as a riser.
  • Includes a sump to allow sediment to settle in basin to minimize clogging of pipes.
  • Made in the USA.

Specifications

Dimensions: 6.50" diameter x 9.00" height
Weight: 1.30 lbs.
Basin Capacity: 0.80 gallons
Sump Capacity: 0.20 gallons
Quantity of Side Outlets: 1
Material: High Impact Polystyrene (HIPS)

Fits

Outlets fits Corrugated Pipe: 3" & 4"
Outlets fits Sewer & Drain Pipe: 3" & 4" (ASTM D2729)
Outlets fits Triple Wall Pipe: 3" & 4"
Use with Round Flat Grates: 6"
Use with Round Atrium Grates: 6"
Use with Square Universal Grates: 7"
Use with PVC Pipe as a Riser: 6" (ASTM D2729 & ASTM D3034, SDR 35)

Applications

A Round Catch Basin with 1 universal outlet used for grass areas, flower beds, decks, driveways, golf courses, medians, etc. The function of the catch basin is to collect and discharge excess water. In addition, the basin is designed to collect any sediment in its sump, which helps minimize the drainage pipe from clogging. Can be used with the 6" Round Flat or 6" Round Atrium Grate. To extend height of basin, 6" PVC pipe (ASTM D2729 and ASTM D3034, SDR 35) can be used.
