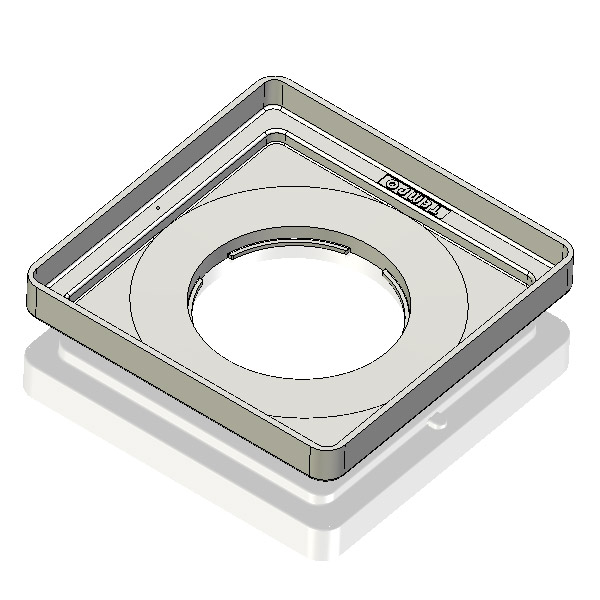

12" Low Profile Basin

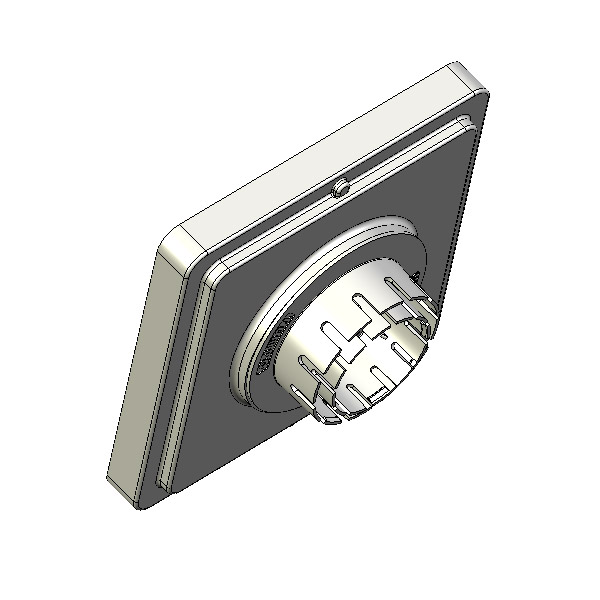

A 12" Low Profile Basin manufactured from High Impact Polystyrene (HIPS) which is used to collect and discharge excess water in order to prevent potential damage to landscapes and property. Use a Basin Adapter (ABA34 or ABA6) to connect the Basin to 3", 4" & 6" Sewer & Drain Pipe (ASTM D2729), 6" Sewer & Drain Pipe (ASTM D3034, SDR 35), 3", 4" & 6" Corrugated Pipe, or 3" & 4" Triple Wall Pipe. The basin is designed to accept the 12" Square Flat and 12" Square Atrium Grates. In order to prevent theft and vandalism the basin comes with 2 holes to allow grate to be secured to basin. Also available in a 9" model.



Features

  • Manufactured from High Impact Polystyrene (HIPS).
  • UV stabilized to protect from sun degradation.
  • Bottom opening to connect to pipe.
  • Use a Basin Adapter (ABA34) to connect to 3" & 4" Sewer & Drain Pipe (ASTM D2729), 3" & 4" Corrugated Pipe and 3" & 4" Triple Wall Pipe.
  • Use a Basin Adapter (ABA6) to connect to 6" Sewer & Drain Pipe (ASTM D2729 and ASTM D3034, SDR 35) and 6" Corrugated Pipe.

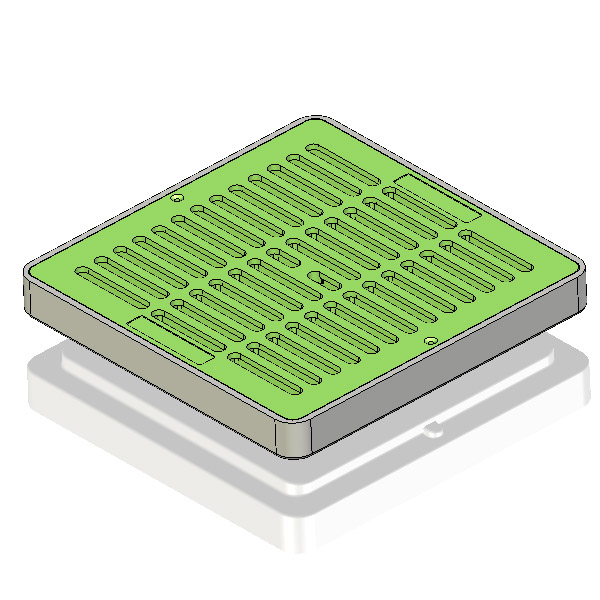

  • Accepts 12" Square Flat and 12" Square Atrium Grates.
  • Includes 2 screw holes to enable grate to be secured to basin.
  • Made in the USA.

Specifications

Dimensions: 12.25" length x 12.25" width x 2.25" height
Weight: 1.45 lbs.
Quantity of Bottom Outlets: 1
Material: High Impact Polystyrene (HIPS)

Fits

When used with Basin Adapter (ABA34), fits Corrugated Pipe: 3" & 4"
When used with Basin Adapter (ABA34), fits Sewer & Drain Pipe: 3" & 4" (ASTM D2729)
When used with Basin Adapter (ABA34), fits Triple Wall Pipe: 3" & 4"
When used with Basin Adapter (ABA6), fits Corrugated Pipe: 6"
When used with Basin Adapter (ABA6), fits Sewer & Drain Pipe: 6" (ASTM D2729 and ASTM D3034, SDR 35)
Use with Square Flat Grates: 12"
Use with Square Atrium Grates: 12"

Applications

A Square Low Profile Basin used for grass areas, flower beds, decks, driveways, golf courses, medians, etc. The function of the low profile basin is to collect and discharge excess water in areas that do not allow a 12" Catch Basin to be installed. Can be used with the 12" Square Flat or 12" Square Atrium Grate. The grate can be screwed on to the catch basin for safety reasons and to protect from theft or vandalism.
