18" Square Catch Basin

A Square Catch Basin manufactured from High Density Polyethylene (HDPE) which is used to collect and discharge excess water in order to prevent potential damage to landscapes and property. This catch basin is available with 2 side openings and 1 optional opening at the bottom which can be cut out along the perforations. Additionally, there are 4 small perforated drainage holes on the bottom of the basin which can be cut out to remove standing water in the sump. A Basin Adapter (ABA34) can be attached to the opening(s) to connect to 3" & 4" Sewer & Drain Pipe, 3" & 4" Corrugated Pipe and 3" & 4" Triple Wall Pipe. A Basin Adapter (ABA6) can be attached to the opening(s) to connect to 6" Sewer & Drain Pipe and 6" Corrugated Pipe. A Basin Plug (ABP) can be used to plug any unused opening(s). This basin is designed to accept an 18" Square Flat grate. In order to prevent theft and vandalism the basin comes with 4 holes to allow grate to be secured to basin. Also available in a 9" and 12" model.



Features

  • Manufactured from High Density Polyethylene (HDPE).
  • UV stabilized to protect from sun degradation.

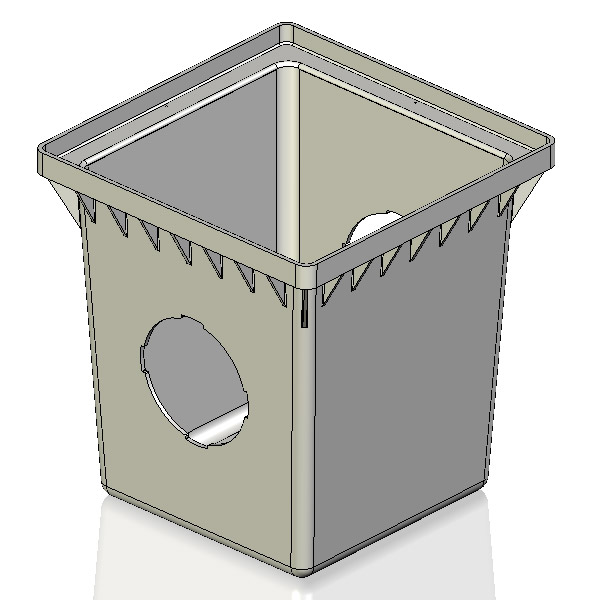

  • Two side panel openings plus an optional perforated opening at the bottom of the basin.
  • Includes four 5/8" optional drain holes at the bottom of the basin.

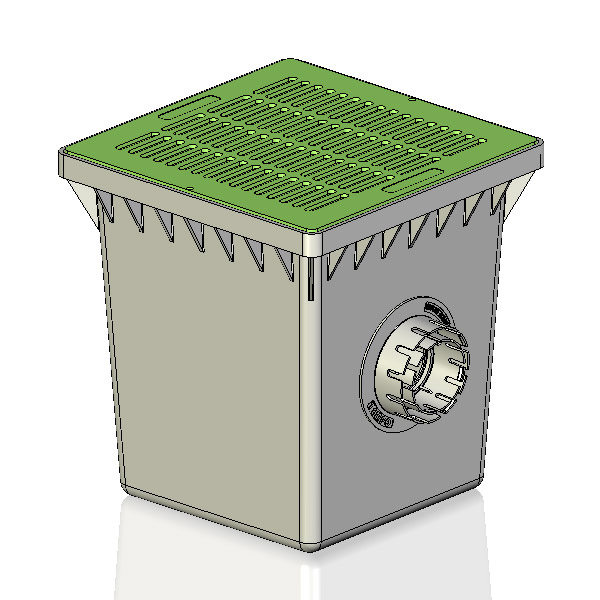

  • Use a Basin Adapter (ABA34) to connect to 3" & 4" Sewer & Drain Pipe (ASTM D2729), 3" & 4" Corrugated Pipe and 3" & 4" Triple Wall Pipe.

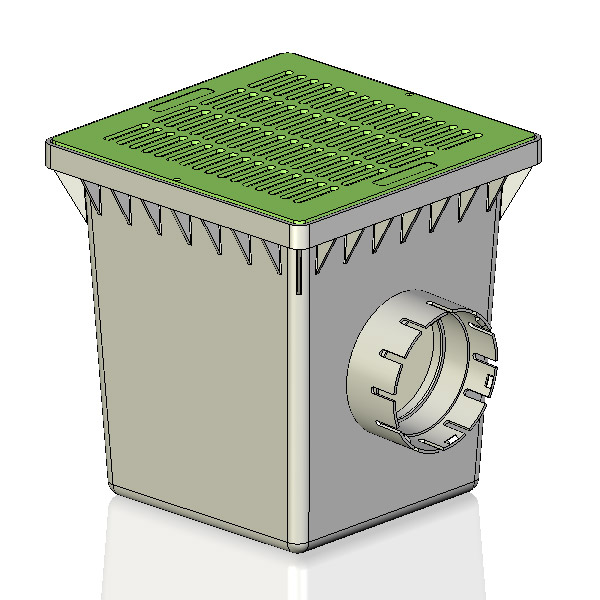

  • Use a Basin Adapter (ABA6) to connect to 6" Sewer & Drain Pipe (ASTM D2729 and ASTM D3034, SDR 35) and 6" Corrugated Pipe.

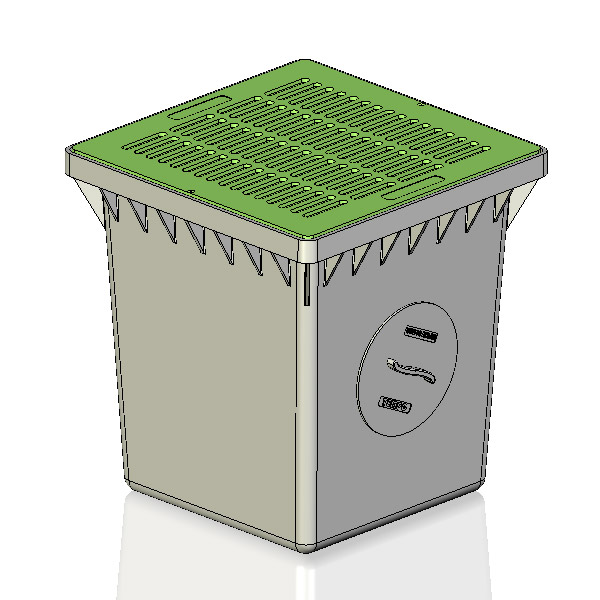

  • Use a Basin Plug to plug any unused opening(s).
  • Accepts 18" Square Flat Grates.

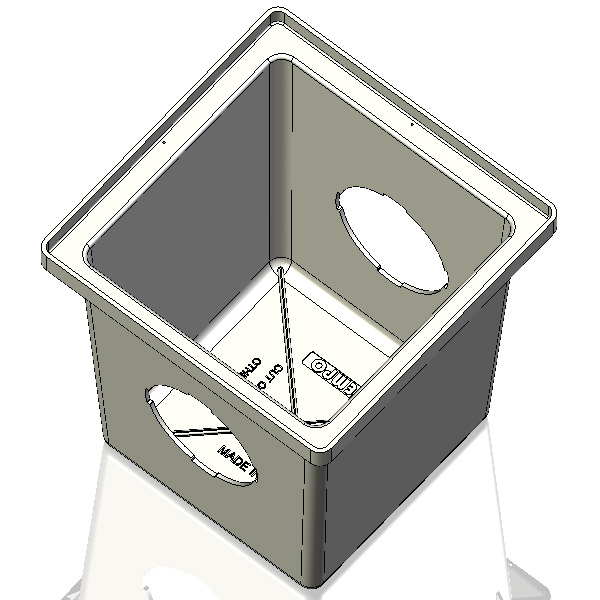

  • Includes a sump to allow sediment to settle in basin to minimize clogging of pipes.
  • Includes 4 screw holes to enable grate to be secured to basin.
  • Made in the USA.

Specifications

Dimensions: 17.75" length x 17.75" width x 18.25" height
Weight: 9.10 lbs.
Basin Capacity: 16.70 gallons
Sump Capacity: 4.90 gallons
Quantity of Side Outlets: 2
Quantity of Optional Bottom Outlets: 1
Quantity of Optional Bottom Drain Holes: 4
Drain Holes Diameter: 5/8"
Material: High Density Polyethylene (HDPE)

Fits

When used with Basin Adapter (ABA34), fits Corrugated Pipe: 3" & 4"
When used with Basin Adapter (ABA34), fits Sewer & Drain Pipe: 3" & 4" (ASTM D2729)
When used with Basin Adapter (ABA34), fits Triple Wall Pipe: 3" & 4"
When used with Basin Adapter (ABA6), fits Corrugated Pipe: 6"
When used with Basin Adapter (ABA6), fits Sewer & Drain Pipe: 6" (ASTM D2729 and ASTM D3034, SDR 35)
Use with Square Flat Grates: 18"

Applications

A Square Catch Basin used for grass areas, flower beds, decks, driveways, golf courses, medians, etc. The function of the catch basin is to collect and discharge excess water. In addition, the basin is designed to collect any sediment in its sump, which helps minimize the drainage pipe from clogging. Can be used with the 18" Square Flat Grate. The grate can be screwed on to the catch basin for safety reasons and to protect from theft or vandalism.
