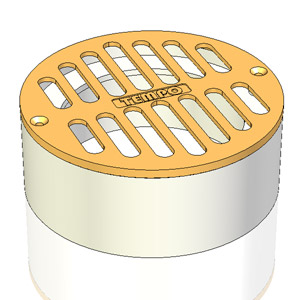

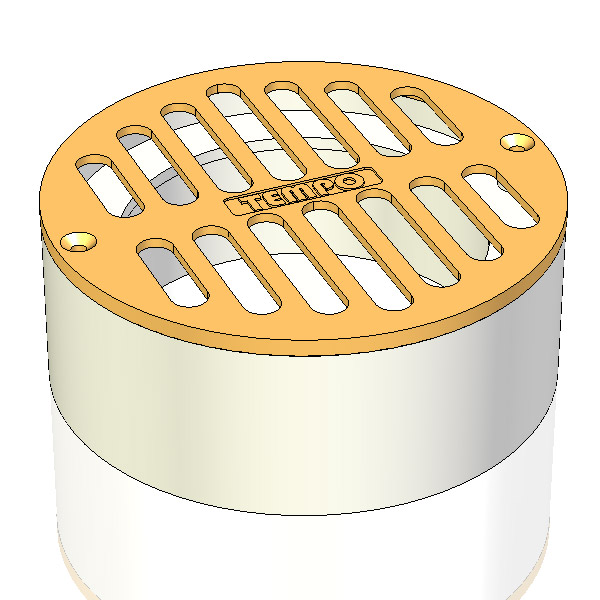

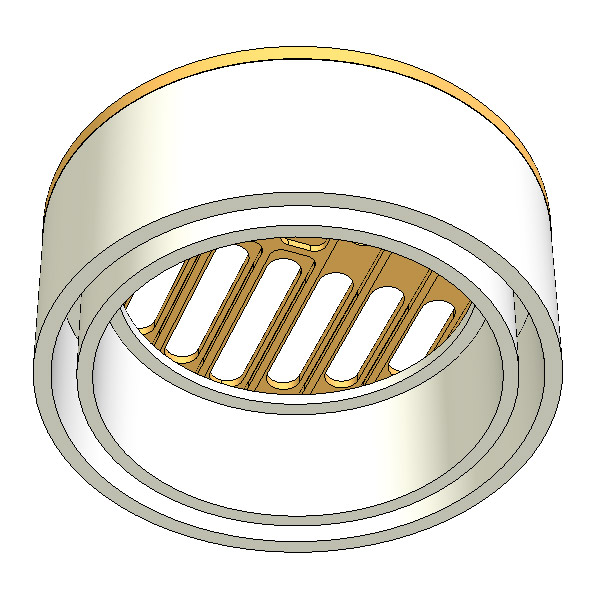

4" Round Flat Brass Grate

A premium 4" brushed satin solid cast brass grate that is secured to a PVC collar with 2 brass screws. The PVC collar can be permanently solvent welded to 3" Sewer & Drain Pipe (ASTM D2729) and 4" Sewer & Drain Fittings (SDR 35) to prevent theft. The grate can be easily removed for cleanout. Also available in a 3" model.



Features

  • Grate is manufactured from solid cast brass with satin finish.
  • Collar is manufactured from PVC.
  • Collar can be solvent welded onto Sewer & Drain Pipe or Fittings.
  • Grate can be removed from collar for easy cleaning.
  • A premium product suited for use around highly visible areas.
  • Fits 3" Sewer & Drain Pipe and 4" Sewer & Drain Fittings.
  • Grate is secured to PVC collar by 2 brass screws to prevent theft.
  • ADA compliant.

Specifications

Dimensions: 4.25" diameter x 1.60" height
Weight: 0.50 lbs.
Open Area: 5 sq in
Slot Width: 5/16"
Flow Rating: 7 GPM
Max Load: 750 lbs.   (Maximum load based on weight uniformly applied across entire grate surface.)
Grate Material: Solid Brass
Collar Material: PVC

Fits

Sewer & Drain Hub Fittings: 4" (SDR 35)
Sewer & Drain Pipe: 3" (ASTM D2729)

Applications

A premium round flat satin brushed brass grate and collar that can be used in highly visible areas such as pool decks, malls, hotels and country clubs to remove excess water. Can be used with 3" Sewer & Drain Pipe (ASTM D2729) or 4" Sewer & Drain Fittings (SDR 35). Grate can withstand pedestrian and bicycle traffic.
