6" Square Universal Grate

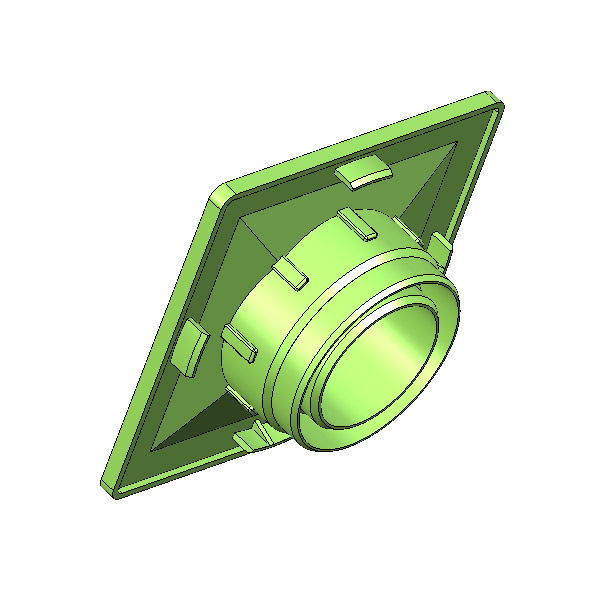

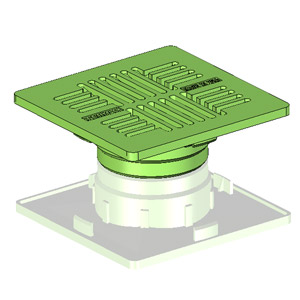

A 6" square universal grate manufactured from Foamed High Density Polyethylene (HDPE). The 6" square universal grate can be used with 3" & 4" Sewer & Drain Pipe (ASTM D2729), 3" & "4 Corrugated Pipe, 3" & 4" Triple Wall Pipe, 3", 4" & 6" Sewer & Drain Fittings (SDR 35) and a 6" round catch basin (BR61 or BR62). Grate is designed to withstand pedestrian traffic. The 6" square universal grate is available in green, black, sand and grey colors.



Features

  • Manufactured from structurally foamed High Density Polyethylene (HDPE).
  • UV stabilized to protect from sun degradation.

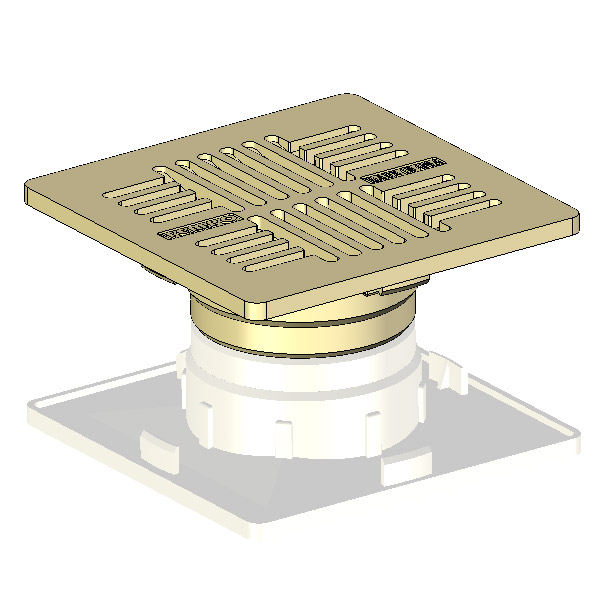

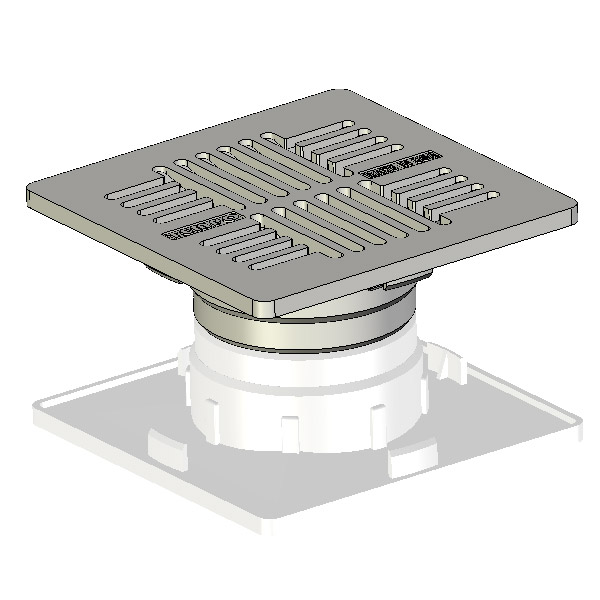

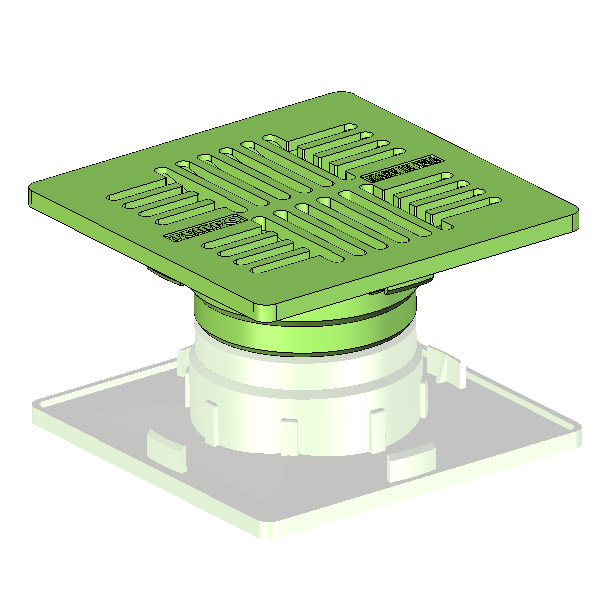

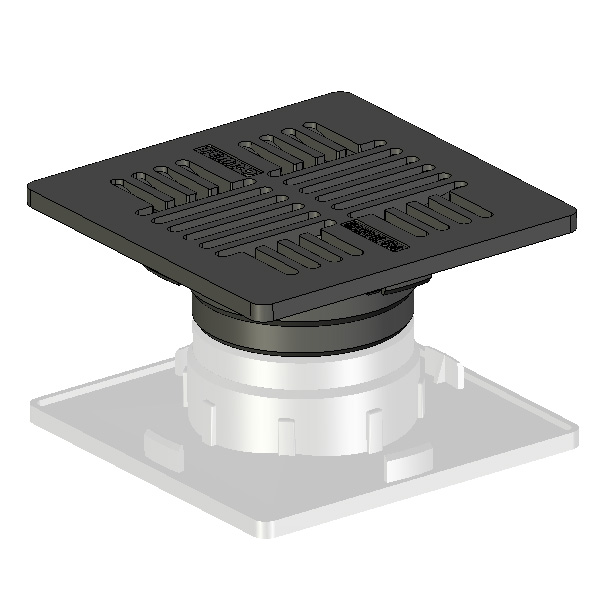

  • Available in green, black, sand and grey.
  • Fits 3" & 4" Sewer & Drain Pipe (ASTM D2729), 3" & 4" Corrugated Pipe, 3" & 4" Triple Wall Pipe, 3", 4" & 6" Sewer & Drain Fittings (SDR 35), and 6" Round Catch Basin.
  • Textured anti-skid surface.
  • Load rated for pedestrian traffic.
  • ADA compliant.
  • Made in the USA.

Specifications

Dimensions: 7.00" length x 7.00" width x 2.25" height
Weight: 0.55 lbs.
Open Area: 13 Sq In
Slot Width: 1/4"
Flow Rating: 11 GPM
Max Load: 250 lbs.   (Maximum load based on weight uniformly applied across entire grate surface.)
Material: Structurally foamed High Density Polyethylene (HDPE) with UV inhibitor

Fits

Sewer & Drain Hub Fittings: 3", 4" & 6" (SDR 35)
Sewer & Drain Pipe: 3" & 4" (ASTM D2729)
Corrugated Pipe: 3" & 4"
Triple Wall Pipe: 3" & 4"

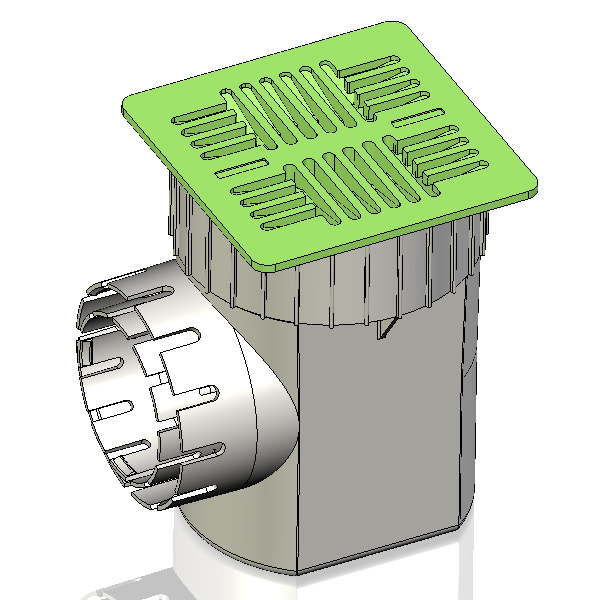

Round Catch Basin: 6"

Applications

A square universal flat grate used for grass areas, flower beds, decks, driveways, golf courses, medians, etc. The square universal grate can be used with 3" & 4" Sewer & Drain Pipe (ASTM D2729), 3" & "4 Corrugated Pipe, 3" & 4" Triple Wall Pipe, 6" Sewer & Drain Fittings (SDR 35) and a 6" Round Catch Basin. Grate is designed to withstand pedestrian traffic.
